| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 32 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8132-32-1M2
SAP Number
822794
Product Family
RT series
Description

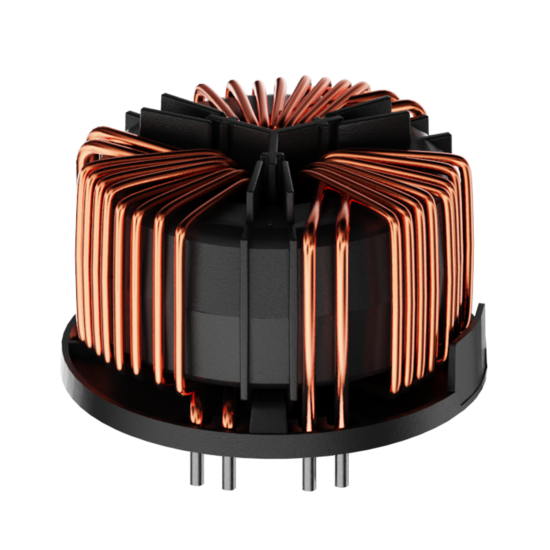

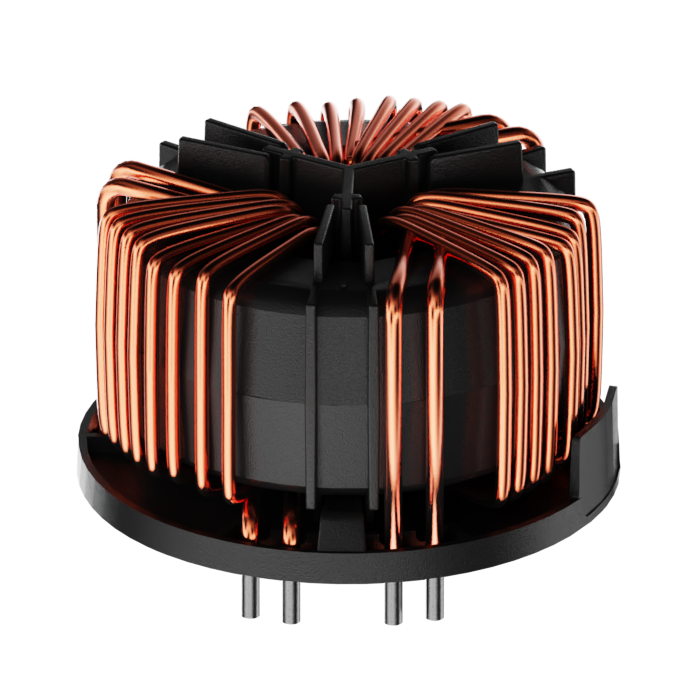

Horizontal 32 A PCB three line Common Mode Choke with 1.2 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 1.2 |
| Mechanic | |
|---|---|
| Length () | 62 |
| Width () | 62 |
| Height () | 38 |
| Volume () | 146.072 |
| Frame size | 9 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| D (mm) | øD= 62 ± 0.2 |
| E (mm) | øЕ = 55.4 ± 0.2 |
| F (mm) | f= 150° ± 10° |
| G (mm) | G=0.6 ± 0.1 |
| H (mm) | 38 |
| L (mm) | 5 ± 0.5 |
| P (mm) | ФP= 2.4 ± 0.1 |
