| General | |
|---|---|
| Voltage AC () | 600 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 10 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8132-10-4M0
SAP Number
816969
Product Family
RT series
Description

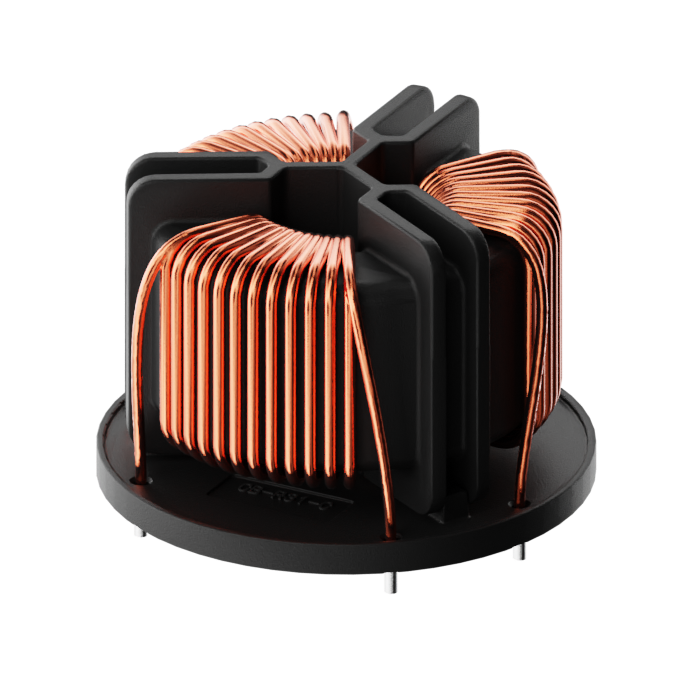

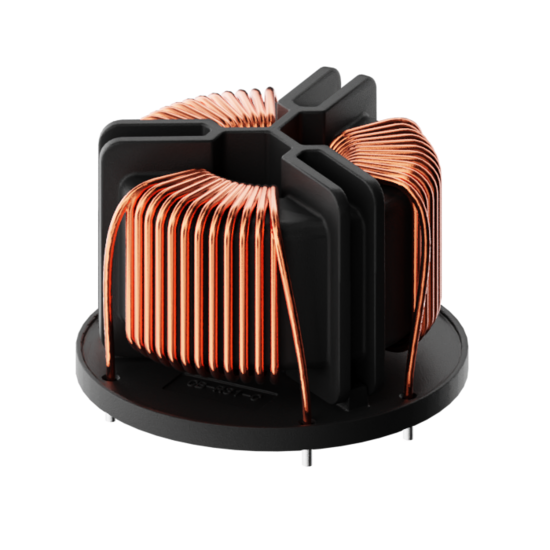

Horizontal 10 A PCB three line Common Mode Choke with 4 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 4 |
| Mechanic | |
|---|---|
| Length () | 51 |
| Width () | 51 |
| Height () | 33 |
| Volume () | 85.833 |
| Frame size | 7 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 44 ± 0.5 |
| D (mm) | ØD = 51 ØD1= 48 ± 0.5 ØD2= 1.7 ØD3= 2.5 |
| H (mm) | 33 |
