| General | |
|---|---|
| Voltage AC () | 520 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 80 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

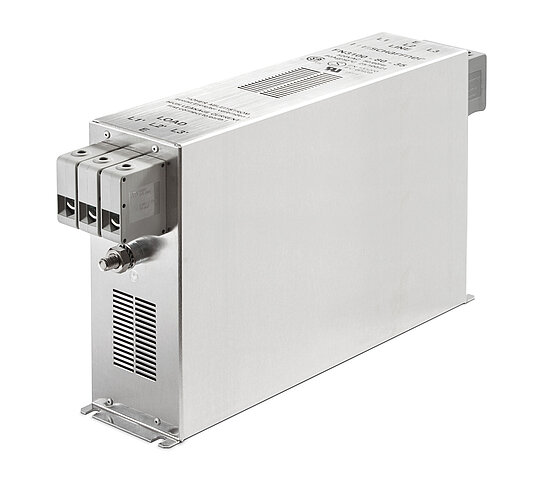

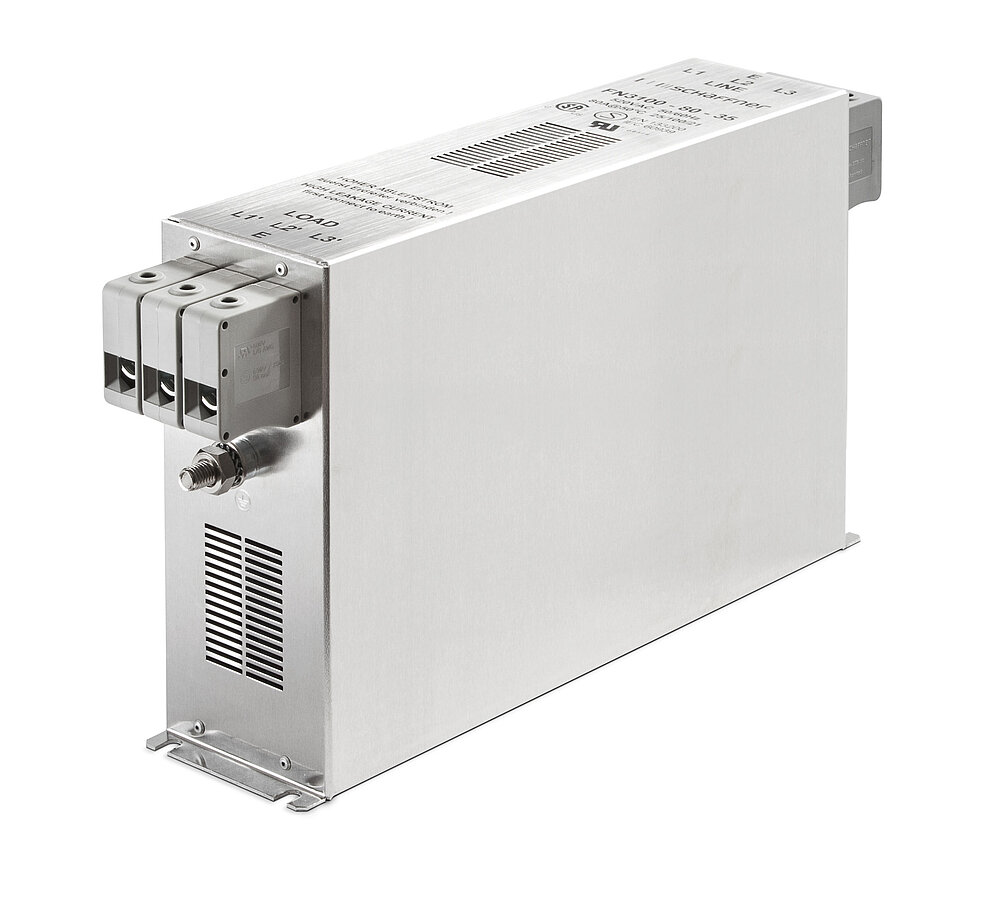

FN3100-80-35
SAP Number
800999
Product Family
FN3100
Description
80 A EMC filter with terminal blocks
Type
Chassis mount
Phases
3 Phases
| Electric | |
|---|---|
| Leakage current IEC60939 () | 10 |
| Power Loss () | 25.9 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 75 |
| DM attenuation @ 150kHz () | 30 |
| Mechanic | |
|---|---|
| Length () | 440 |
| Width () | 90 |
| Height () | 220 |
| Volume () | 8712 |
| Weight () | 4950 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 379 |
| B (mm) | 90 |
| C (mm) | 220 |
| D (mm) | 350 |
| E (mm) | 364 |
| F (mm) | 65 |
| G (mm) | 6.5 |
| H (mm) | 1.5 |
| I (mm) | 45 |
| J (mm) | M10 |
| L (mm) | 129 |
