| General | |
|---|---|
| Voltage AC () | 520 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 300 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN3100-300-99
SAP Number
801123
Product Family
FN3100
Description

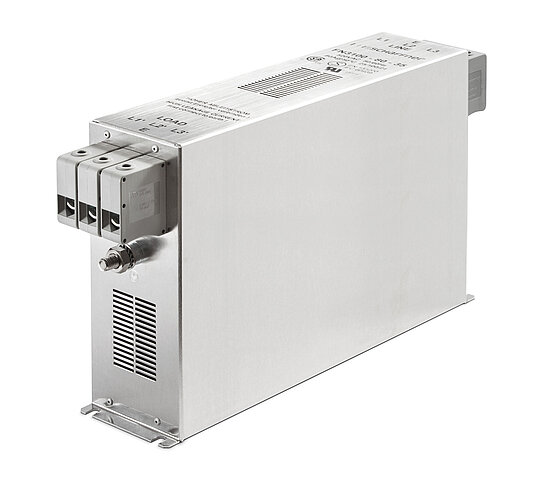

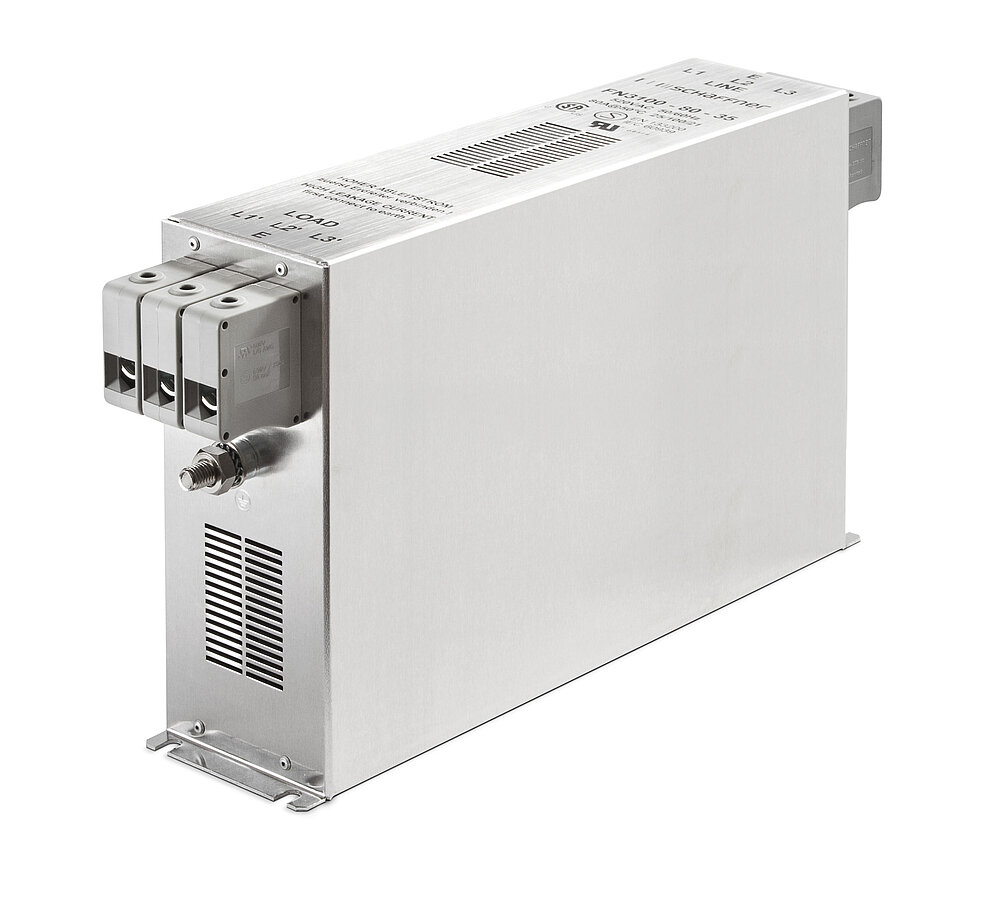

300 A EMC filter with bus bars
Type
Chassis mount
Phases
3 Phases
| Electric | |
|---|---|
| Leakage current IEC60939 () | 10 |
| Input terminal | Bus bar |
| Output terminal | Threaded stud |
| Power Loss () | 54 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 65 |
| DM attenuation @ 150kHz () | 25 |
| Mechanic | |
|---|---|
| Length () | 610 |
| Width () | 200 |
| Height () | 200 |
| Volume () | 24400 |
| Weight () | 13200 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 440 |
| B (mm) | 200 |
| C (mm) | 200 |
| D (mm) | 400 |
| E (mm) | 420 |
| F (mm) | 160 |
| G (mm) | 8 |
| H (mm) | 1.5 |
| I (mm) | 105 |
| J (mm) | M12 |
| K (mm) | 70 |
| L (mm) | 71.5 |
| X (mm) | ~22 |
| Y (mm) | M12 |
| Z (mm) | ~105 |
