| General | |
|---|---|
| Voltage AC () | 530 |
| Nominal Frequency () | 60 |
| Rated Current @ambient () | 20 |
| Ambient temperature () | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

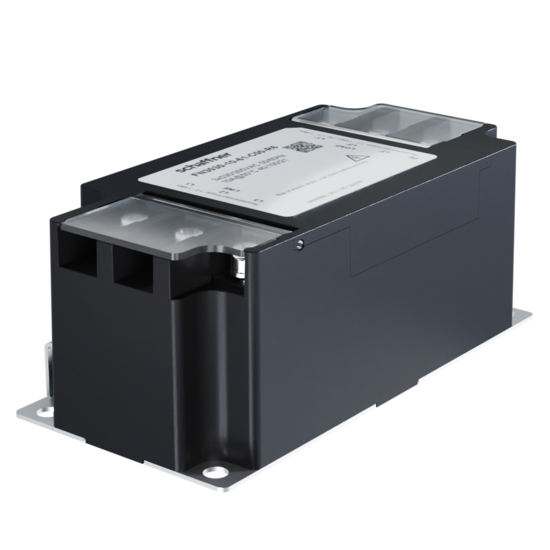

FN3033-20-61-C20-R6
SAP Number
823464
Product Family
FN3030
Description
20 A EMC filter with low leakage current and DIN rail mount for Japanese market (Nano crystalline version)
Type
Chassis mount
Phases
3 Phases
| Electric | |
|---|---|
| Leakage current IEC60939 () | 4 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 30 |
| DM attenuation @ 150kHz () | 35 |
| Mechanic | |
|---|---|
| Length () | 128 |
| Width () | 63 |
| Height () | 50 |
| Volume () | 34.354125 |
| Weight () | 450 |
Schaffner schemes
Mechanical Data Image
| Dimensions |
|---|
