FN2200B-150-40

150 A EMC filter with terminal blocks

Most important files and data about the article you can take over here.

Downloads

Contact Us

General Information

Designation

FN2200B-150-40

SAP Number

803516

Product Family

FN2200

Description

150 A EMC filter with terminal blocks

Type

Chassis mount

Phases

DC
Distribution stock
General
Voltage AC () 1200
Nominal Frequency () DC
Rated Current @ambient () 150
Ambient temperature () 55
Electric
Power Loss () 31
Attenuation
DM attenuation @ 150kHz () 32
Mechanic
Length () 220
Width () 140
Height () 115
Volume () 3542
Weight () 4950

Schaffner schemes

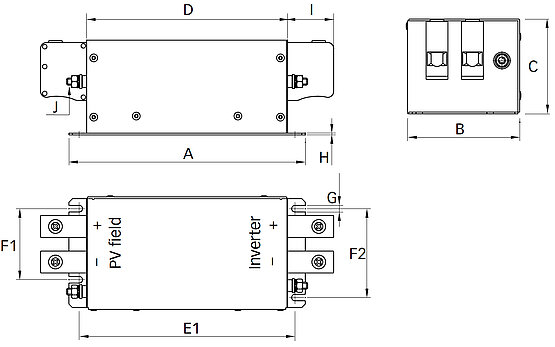

Mechanical Data Image

Dimensions
A (mm) () 250
B (mm) 140
C (mm) 115
D (mm) 220
E (mm) 232.5
F (mm) 100120
G (mm) 5.5
H (mm) 2
I (mm) 51
J (mm) M10
