| General | |
|---|---|
| Voltage AC () | 1200 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 100 |
| Ambient temperature () | 55 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2200B-100-35
SAP Number
803515
Product Family
FN2200
Description
100 A EMC filter with terminal blocks
Type
Chassis mount
Phases
DC
| Electric | |
|---|---|
| Power Loss () | 22 |
| Attenuation | |
|---|---|
| DM attenuation @ 150kHz () | 36 |
| Mechanic | |
|---|---|
| Length () | 190 |
| Width () | 125 |
| Height () | 95 |
| Volume () | 2256 |
| Weight () | 2700 |
Schaffner schemes

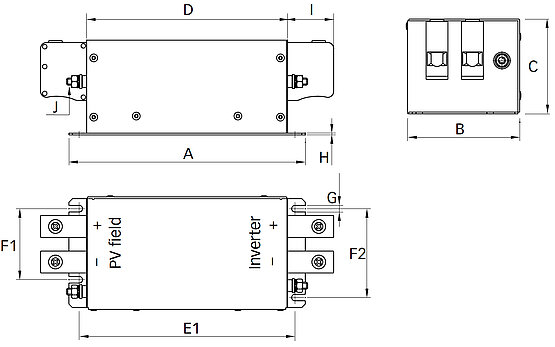

Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 220 |
| B (mm) | 125 |
| C (mm) | 95 |
| D (mm) | 190 |
| E (mm) | 202.5 |
| F (mm) | 80, 100 |
| G (mm) | 5.5 |
| H (mm) | 1.5 |
| I (mm) | 45 |
| J (mm) | M8 |
