| General | |
|---|---|
| Voltage AC () | 1200 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 150 |
| Ambient temperature () | 55 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2200-150-40
SAP Number
803484
Product Family
FN2200
Description
150 A EMC filter with terminal blocks
Type
Chassis mount
Phases
DC
| Electric | |
|---|---|
| Power Loss () | 31 |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz () | 72 |
| DM attenuation @ 150kHz () | 32 |
| Mechanic | |
|---|---|
| Length () | 220 |
| Width () | 140 |
| Height () | 115 |
| Volume () | 3542 |
| Weight () | 4950 |
Schaffner schemes

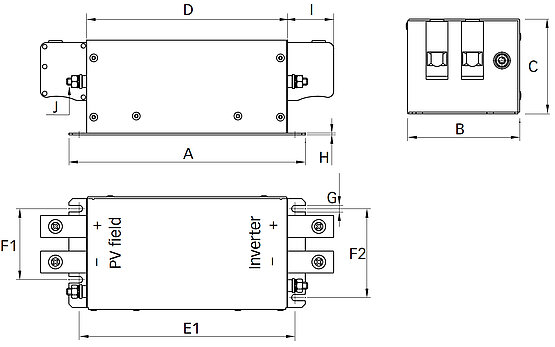

Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 250 |
| B (mm) | 140 |
| C (mm) | 115 |
| D (mm) | 220 |
| E (mm) | 232.5 |
| F (mm) | 100120 |
| G (mm) | 5.5 |
| H (mm) | 2 |
| I (mm) | 51 |
| J (mm) | M10 |
