| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 10 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2070-10-08
SAP Number
821022
Product Family
FN2070
Description

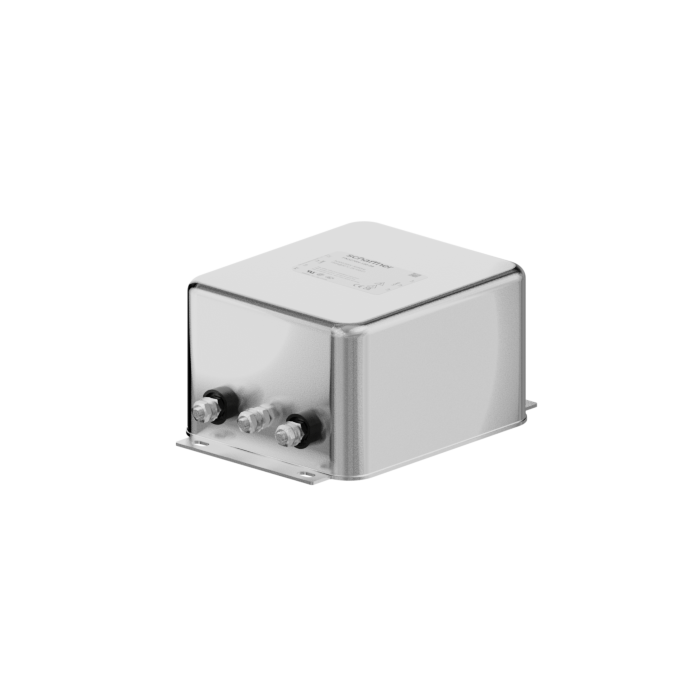

10 A EMC filter with screw terminals
Type
Chassis mount
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Leakage current IEC60939 () | 0.66 |
| Input terminal | Threaded stud |
| Power Loss () | 9.1 |
| Resistance () | 220 |
| Attenuation | |
|---|---|
| Inductance L1 () | 4.5 |
| Capacitance Cx1 () | 1 |
| Capacitance Cy1 () | 4.7 |
| CM attenuation @ 150kHz () | 33 |
| DM attenuation @ 150kHz () | 66 |
| Mechanic | |
|---|---|
| Length () | 156 |
| Width () | 57.5 |
| Height () | 45.5 |
| Volume () | 408 |
| Weight () | 670 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 156 |
| B (mm) | 57.5 |
| C (mm) | 45.4 |
| D (mm) | 130.5 |
| E (mm) | 56 |
| F (mm) | 143 |
| G (mm) | 25 |
| H (mm) | 12.4 |
| I (mm) | 32.5 |
| J (mm) | 15.5 |
| K (mm) | 5.3 |
| L (mm) | 6 |
| M (mm) | 1 |
| M (mm) | M4 |
| O (mm) | 8.4 |
| P (mm) | 18 |
