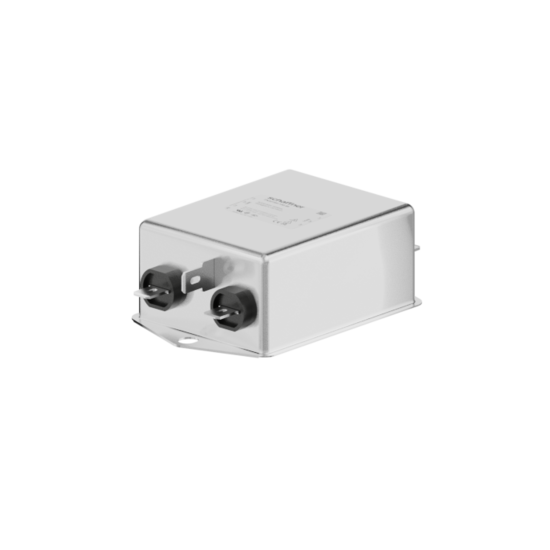

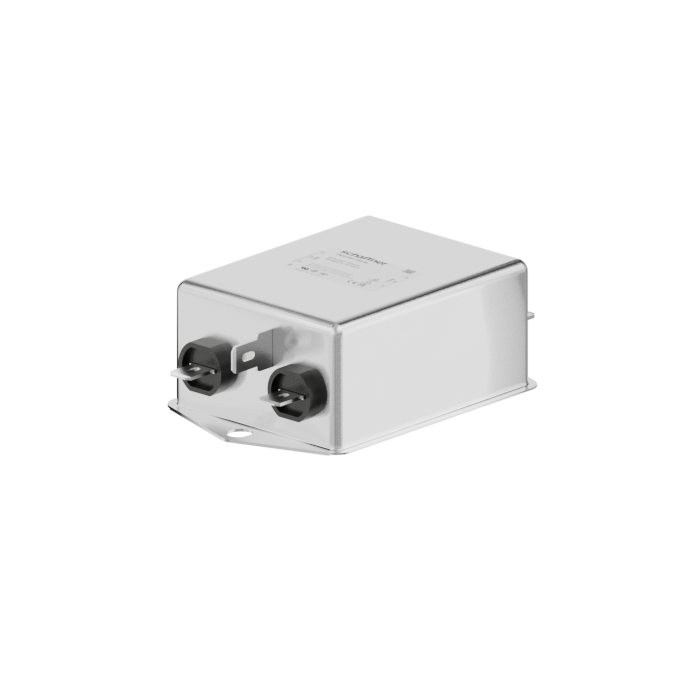

FN2030B-8-06

8 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2030B-8-06

SAP Number

802505

Product Family

FN2030

Description

8 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 8
Ambient temperature () 40
Electric
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss () 3.1
Resistance () 680
Attenuation
Inductance L1 () 8
Capacitance Cx1 () 0.47
DM attenuation @ 150kHz () 32
Mechanic
Length () 64.8
Width () 49.8
Height () 30.3
Volume () 98
Weight () 170

Schaffner schemes

Dimensions
A (mm) () 85
B (mm) 54
C (mm) 40.3
D (mm) 64.8
E (mm) 49.8
F (mm) 75
G (mm) 27
H (mm) 12.3
I (mm) 29.8
J (mm) 11.4
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 14.9
