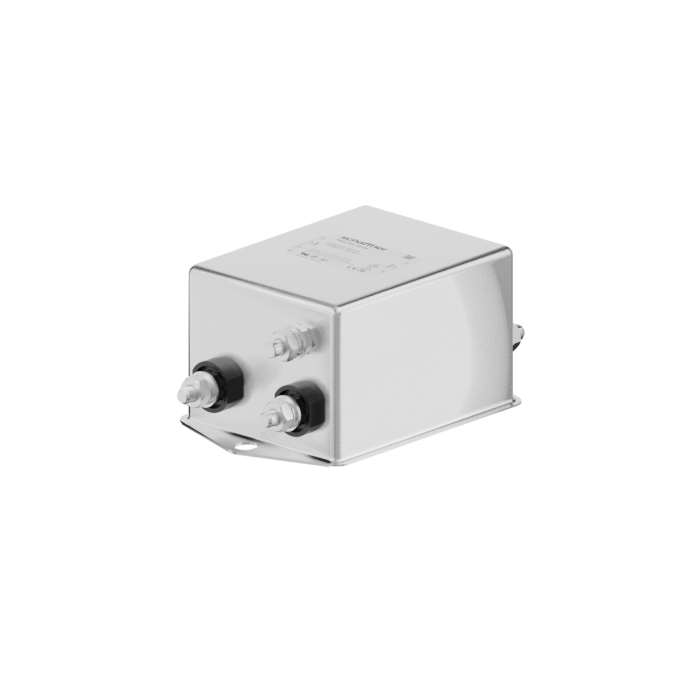

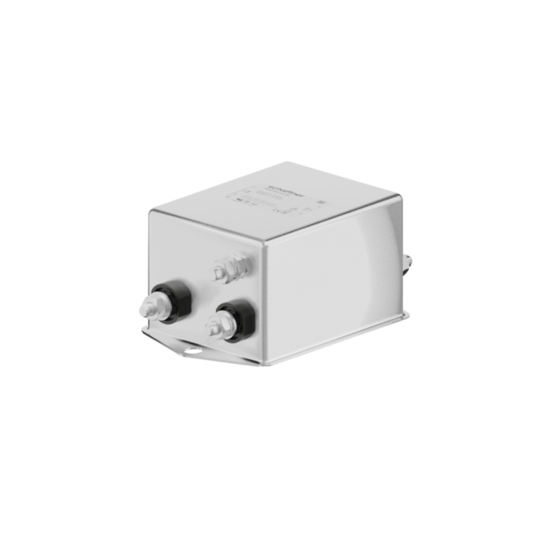

FN2030B-30-08

30 A EMC filter with screw terminals

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2030B-30-08

SAP Number

802524

Product Family

FN2030

Description

30 A EMC filter with screw terminals

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 30
Ambient temperature () 40
Electric
Input terminal 08 - M4 screw terminal
Output terminal 08 - M4 screw terminal
Power Loss () 6
Resistance () 330
Attenuation
Inductance L1 () 2
Capacitance Cx1 () 1
DM attenuation @ 150kHz () 26
Mechanic
Length () 64.8
Width () 49.8
Height () 40.3
Volume () 130
Weight () 326

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 85
B (mm) 54
C (mm) 40.3
D (mm) 64.8
E (mm) 49.8
F (mm) 75
G (mm) 27
H (mm) 12.3
I (mm) 29.8
J (mm) 11.4
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) M4
