FN2030B-10-07

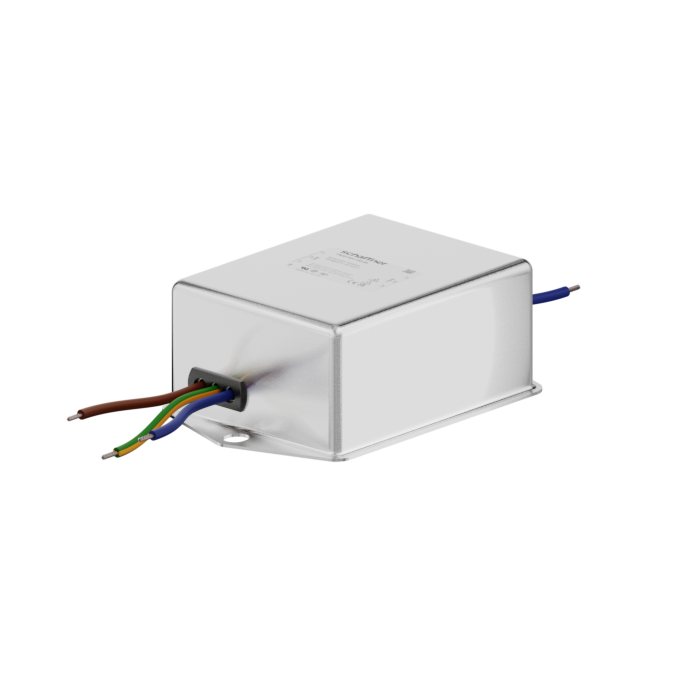

10 A EMC filter with wire leads

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2030B-10-07

SAP Number

815030

Product Family

FN2030

Description

10 A EMC filter with wire leads

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 10
Ambient temperature () 40
Electric
Input terminal 07 - wire
Output terminal 07 - wire
Power Loss () 5.3
Resistance () 680
Attenuation
Inductance L1 () 8.45
Capacitance Cx1 () 0.47
DM attenuation @ 150kHz () 32
Mechanic
Length () 64.8
Width () 49.8
Height () 30
Volume () 97
Weight () 196

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 85
B (mm) 54
C (mm) 30.3
D (mm) 64.8
E (mm) 49.8
F (mm) 75
G (mm) 27
H (mm) 12.3
I (mm) 20.8
J (mm) 19.9
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 14.9
