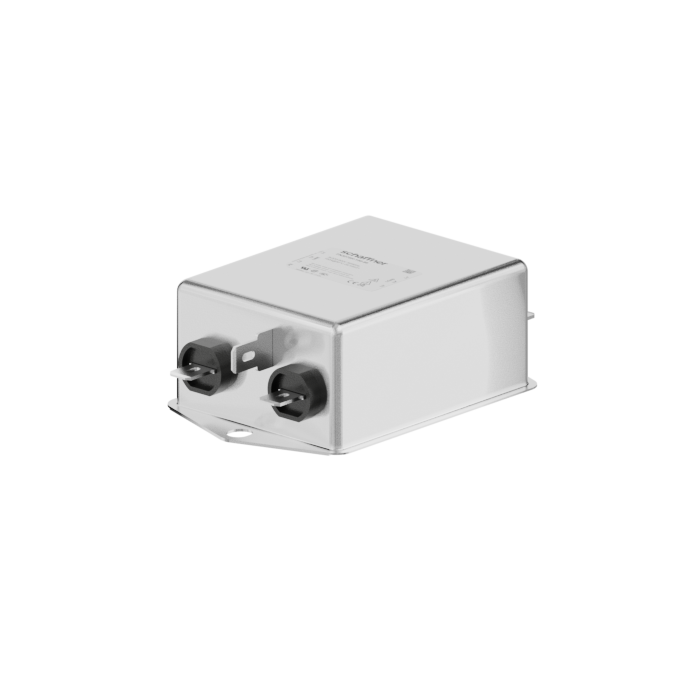

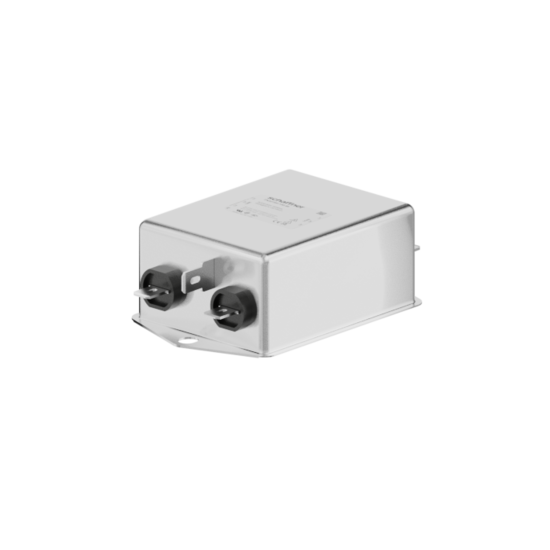

FN2030A-12-06

12 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2030A-12-06

SAP Number

803954

Product Family

FN2030

Description

12 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 12
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.07
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss () 7.6
Resistance () 330
Attenuation
Inductance L1 () 4
Capacitance Cx1 () 1
Capacitance Cy1 () 0.47
CM attenuation @ 150kHz () 12
DM attenuation @ 150kHz () 32
Mechanic
Length () 64.8
Width () 49.8
Height () 30.3
Volume () 98
Weight () 185

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 64
B (mm) 35
C (mm) 24.3
D (mm) 43.5
E (mm) 32.5
F (mm) 54
G (mm) 21
H (mm) 9.3
I (mm) 15.3
J (mm) 21.8
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 21.8
