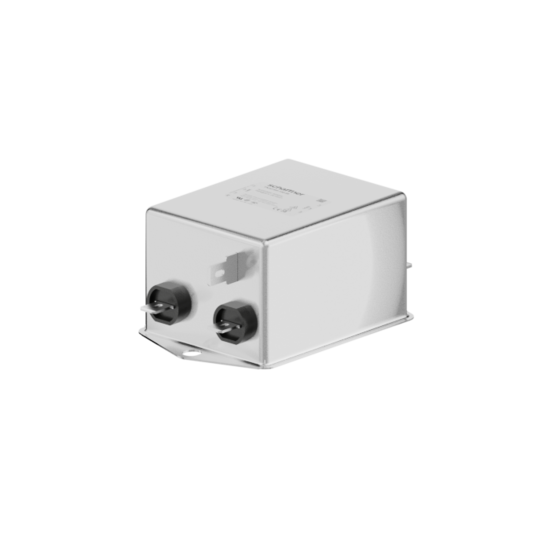

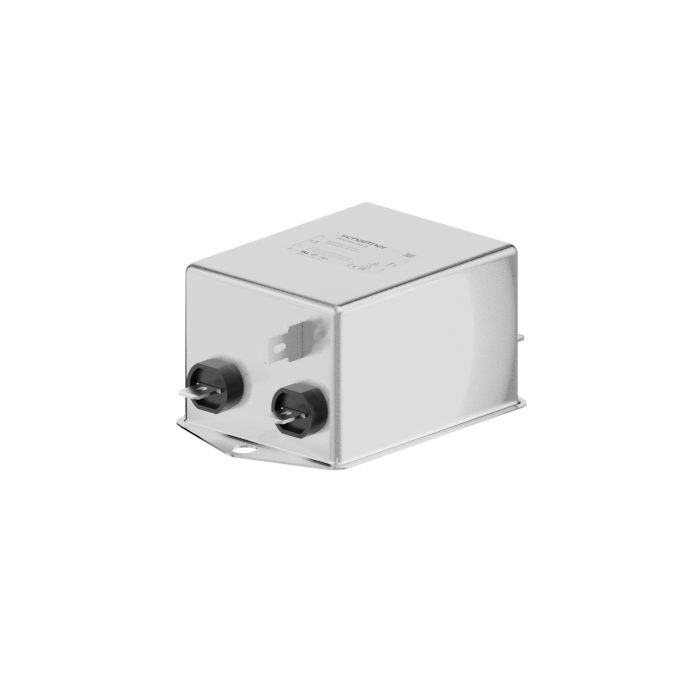

FN2030-16-06

16 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2030-16-06

SAP Number

802434

Product Family

FN2030

Description

16 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 16
Ambient temperature () 40
Electric
Leakage current IEC60939 () 1.41
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss () 6.1
Resistance () 330
Attenuation
Inductance L1 () 4
Capacitance Cx1 () 1
Capacitance Cy1 () 10
CM attenuation @ 150kHz () 38
DM attenuation @ 150kHz () 32
Mechanic
Length () 64.8
Width () 49.8
Height () 40.3
Volume () 130
Weight () 265

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 85
B (mm) 54
C (mm) 40.3
D (mm) 64.8
E (mm) 49.8
F (mm) 75
G (mm) 27
H (mm) 12.3
I (mm) 29.8
J (mm) 11.4
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 14.9
