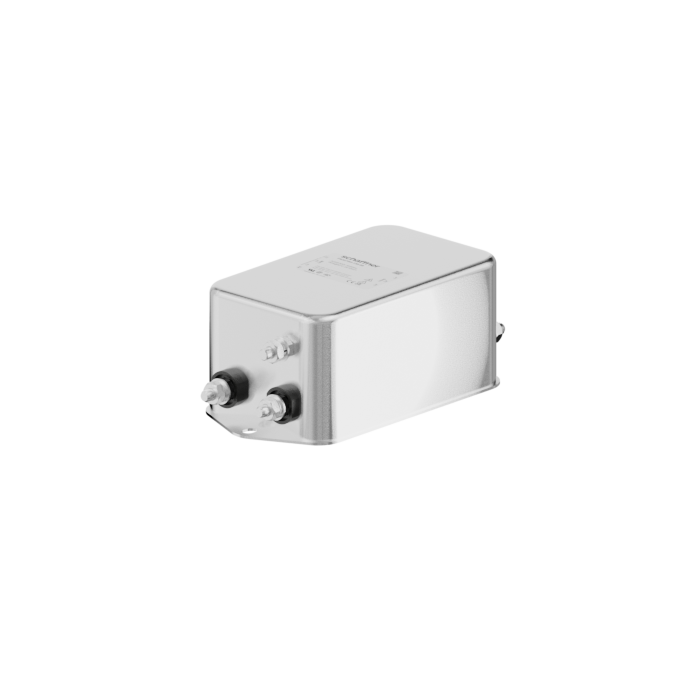

FN2020B-30-08

30 A EMC filter with screw terminals

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2020B-30-08

SAP Number

800857

Product Family

FN2020

Description

30 A EMC filter with screw terminals

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 30
Ambient temperature () 40
Electric
Input terminal 08 - M4 screw terminal
Output terminal 08 - M4 screw terminal
Power Loss () 6.3
Resistance () 470
Attenuation
Inductance L1 () 0.67
Capacitance Cx1 () 0.47
DM attenuation @ 150kHz () 10
Mechanic
Length () 94
Width () 56
Height () 45.4
Volume () 239
Weight () 470

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 113.5
B (mm) 57.5
C (mm) 45.4
D (mm) 94
E (mm) 56
F (mm) 103
G (mm) 25
H (mm) 12.4
I (mm) 32.4
J (mm) 15.5
K (mm) 4.4
L (mm) 6
M (mm) 1
M (mm) M4
