FN2020B-3-06

3 A EMC filter with fast-ons

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2020B-3-06

SAP Number

800800

Product Family

FN2020

Description

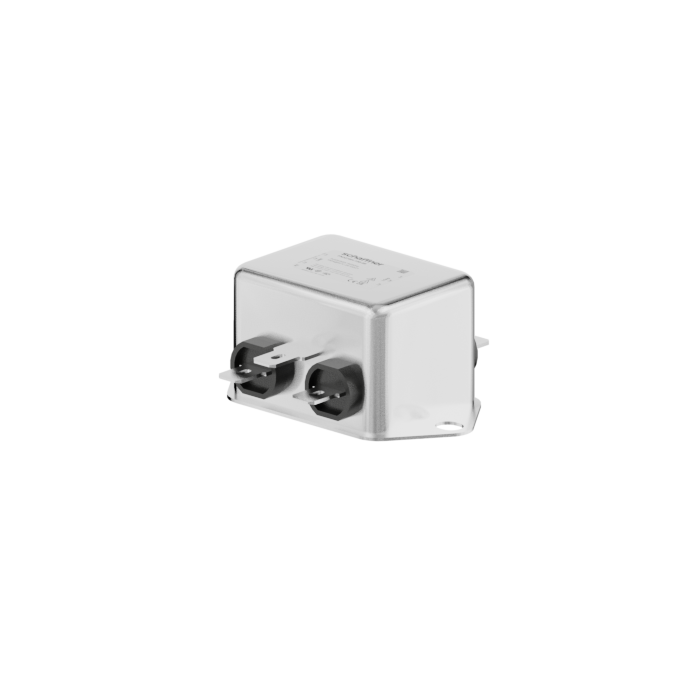

3 A EMC filter with fast-ons

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC (V) 250
Nominal Frequency (Hz) 50
Rated Current @ambient (A) 3
Ambient temperature (°C) 40
Electric
Input terminal 06 - faston 6.3x0.8/sold lug
Output terminal 06 - faston 6.3x0.8/sold lug
Power Loss (W) 1.2
Resistance (kΩ) 1000
Attenuation
Inductance L1 (µH) 2.5
Capacitance Cx1 (µF) 0.15
DM attenuation @ 150kHz (dB) 11
Mechanic
Length (mm) 43.5
Width (mm) 32.5
Height (mm) 29.3
Volume (cm3) 41
Weight (g) 75

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) 64
B (mm) 35
C (mm) 29.3
D (mm) 43.5
E (mm) 32.5
F (mm) 54
G (mm) 21
H (mm) 9.3
I (mm) 15.3
J (mm) 21.8
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 21.8
