FN2020-6-07

6 A EMC filter with wire leads

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2020-6-07

SAP Number

800605

Product Family

FN2020

Description

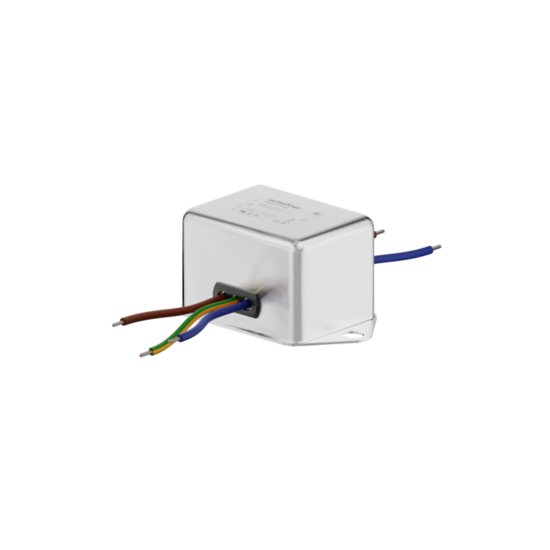

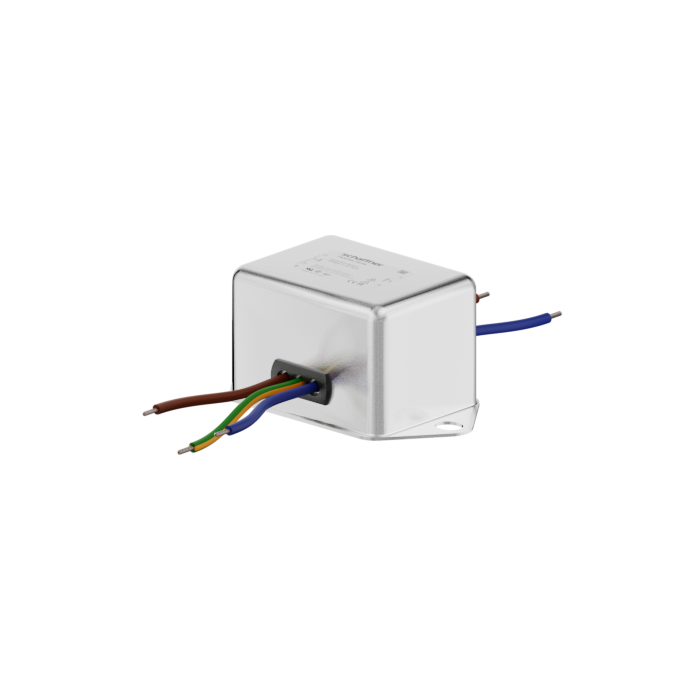

6 A EMC filter with wire leads

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 6
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.66
Input terminal 07 - wire
Output terminal 07 - wire
Power Loss () 1.5
Resistance () 1000
Attenuation
Inductance L1 () 1
Capacitance Cx1 () 0.15
Capacitance Cy1 () 4.7
CM attenuation @ 150kHz () 19
Mechanic
Length () 43.5
Width () 32.5
Height () 29.3
Volume () 41
Weight () 80

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 64
B (mm) 35
C (mm) 29.3
D (mm) 43.5
E (mm) 32.5
F (mm) 54
G (mm) 21
H (mm) 9.3
I (mm) 15.3
J (mm) 21.8
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 21.8
