FN2020-1-07

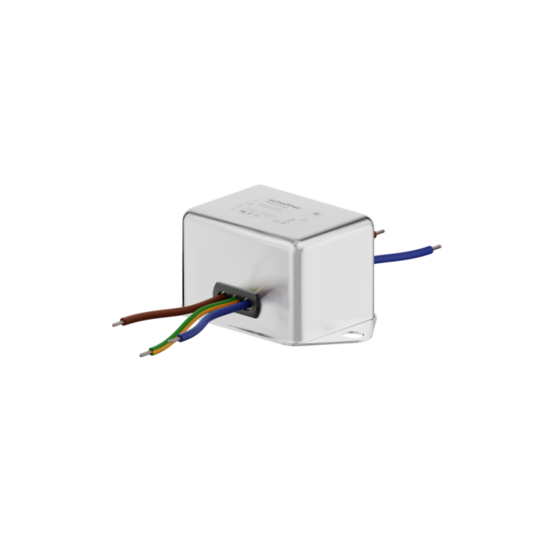

1 A EMC filter with wire leads

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2020-1-07

SAP Number

800601

Product Family

FN2020

Description

1 A EMC filter with wire leads

Type

Chassis mount

Application

General

Phases

1 Phase
Distribution stock
General
Voltage AC () 250
Nominal Frequency () 50
Rated Current @ambient () 1
Ambient temperature () 40
Electric
Leakage current IEC60939 () 0.66
Input terminal Wire Lead
Power Loss () 0.8
Resistance () 1000
Attenuation
Inductance L1 () 12
Capacitance Cx1 () 0.15
Capacitance Cy1 () 4.7
CM attenuation @ 150kHz () 41
DM attenuation @ 150kHz () 22
Mechanic
Length () 43.5
Width () 32.5
Height () 29.3
Volume () 41
Weight () 80

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 64
B (mm) 35
C (mm) 29.3
D (mm) 43.5
E (mm) 32.5
F (mm) 54
G (mm) 21
H (mm) 9.3
I (mm) 15.3
J (mm) 21.8
K (mm) 5.3
L (mm) 6.3
M (mm) 0.7
M (mm) 6.3 x 0.8
O (mm) 8.3
P (mm) 21.8
