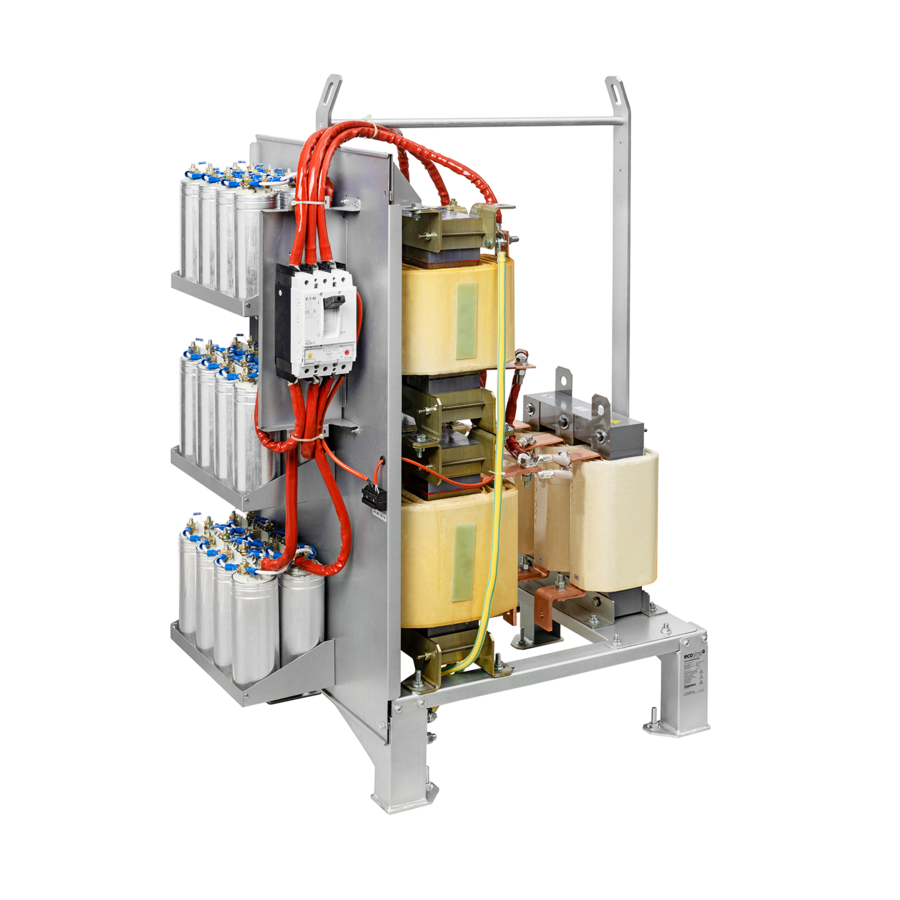

Ecosine max, 480 VAC 50 Hz Full Performance Passive Harmonic Filters

Demonstrate best cost-performance ratio
Achieve 5% THDi for diode rectifier without DC-link choke and thyristor rectifier
Best-in-class partial load performance
Most compact open panel design for cabinet integration
Reliable and robust
Plug and play, ready to use

Features and Benefits

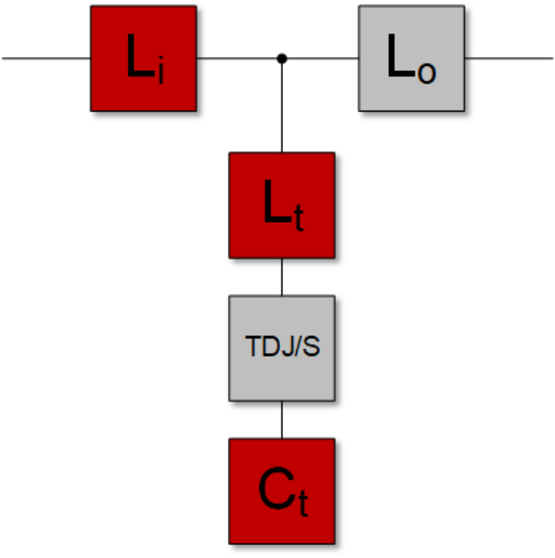

Schaffner ecosine harmonic filters represent an economical solution to the challenge of load-applied harmonics mitigation in three-phase power systems. With a plug-and-play approach and more compact dimensions than comparable products, they can be quickly installed and easily commissioned. They increase the reliability and service life of electric installations, help utilize electric sytem capacity better, and are the key to meet Power Quality standards such as IEEE 519. Ecosine filters reshape your distorted current back to the desired sinusoidal waveform. Schaffner ecosine filters can be applied to virtually any kind of power electronics with front-end six-pulse rectifiers, 3-phase diode or thyristor bridges, where harmonic current distortion needs to be reduced to defined limits.

Typical Applications

Equipment with front-end six-pulse rectifier

Motor drives

Factory automation equipment

Water/wastewater treatment facilities

Fan and pump applications

HVAC installations

Mission-critical processes

DC fast chargers

Technical Specifications

Nominal operating voltage

3 x 440 VAC to 480 VAC ±10%

Operating frequency

50 Hz ±1 Hz

Flammability corresponding to

UL 94 V-0

Nominal motor drive input power rating

315 to 560 kW

Total harmonic current distortion THDi*

<5% @ rated power for drives without Ldc

~3.5% @ rated power for drives equipped with 4% Ldc

Efficiency

>99% for rated voltage and power

Overload capability

1.6x rated current for 1 minute, once per hour

SCCR**

100 kA (UL approved)

High potential test voltage

P -> E 2520 VAC (1s)

Overvoltage category

OV III (IEC 60664-1)

Earthing System

TN, TT, IT

Protection category

IP 00

Cooling

External cooling***

Ambient temperature range

–25°C to +40°C fully operational

+40°C to +70°C derated operation****

–25°C to +85°C transport and storage

Design corresponding to

Filter: UL 61800-5-1, EN 61800-5-1

Chokes: EN 60076-6

* System requirements: THDv <2%, line voltage unbalance <1% Note: performance specifications in this brochure refer to six-pulse diode rectifiers. SCR rectifier front-ends will produce different results, dependent upon the firing angle of the thyristors. ** External UL-rated fuses required. Please consult the user manual. *** Please check the inlet air flow required for cooling table further in this document and the user manual. **** Iderated = Inominal*SQRT((Tmax-Tamb)/(Tmax-Tnominal)) = Inominal*SQRT((70°C-Tamb)/30°C)
