DATASHEET
Ecosine Economy (10% THDi) FN 3418 LV
Ecosine Economy Line 60 Hz Oberschwingungsfilter
2021
15 Apr 2021
Ecosine passiv
FN 3418 LV: Ecosine Economy Line 60 Hz Oberschwingungsfilter
  • Economy-Linie von passiven harmonischen Filtern für THID <7%.
  • Unterstützung bei der Einhaltung von EN 61000-3-12, IEEE-519 und anderen PQ-Normen
  • Unterstützung einer effizienten Auslastung des elektrischen Systems
  • Ideal für AC- oder DV-Motorantriebe mit 6-Puls-Gleichrichter-Frontend
  • Geeignet für 200-240 V Diode und Thyristor (SCR) Gleichrichteranwendungen

Performance indicators

Technical specifications

Nominal operating voltage

3x 200 to 240 VAC ±10%

Frequenz

60 Hz ±1 Hz

Total harmonic current distortion THDi*

<7% @ rated power (with DC-Link choke)
<13% @ rated power (without DC-Link choke)

Total demand distortion TDD

According to IEEE-519

Nominal motor drive input power rating

2.5 to 125 HP

Efficiency

>98% @ nominal line voltage and power

High potential test voltage

P -> E 2500 VAC (2 sec)

Protection category

IP 20

Cooling

Internal fan cooling, unregulated

Overload capability

1.6x rated current for 1 minute, once per hour

Ambient temperature range

–25°C to +45°C fully operational
+45°C to +70°C derated operation**
–25°C to +70°C transport and storage

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 508, EN 61558-2-20, CE (LVD 2006/96/EC)

MTBF @ 45°C/500 V (Mil-HB-217F)

200,000 hours

SCCR**

100 kA

Earthing System

TN, TT, IT

Approvals & Compliances

Features and benefits

FN 3418 LV (60 Hz) models of the ECOsine product family represent the very compact “economy line” with a THID performance of ≤7% (with Ldc).
The performance is still sufficient to comply with EN 61000-3-12 or with IEEE-519 for Isc/IL <50. Schaffner ECOsine filters help to unburden the electrical infrastructure from excess loading and heat caused by current harmonics, and therefore support a better utilization of electric system capacity.
Lower harmonics also reduce the risk of system resonances and potential downtime of sensitive electronic equipment.
FN 3418 LV filters upgrade standard motor drives to “low-harmonic drives” quickly and easily.

Typical applications

  • Three-phase power conversion equipment with front-end six-pulse rectifier (diode or SCR)
  • Motor drives, like those used e.g. in pump and fan applications
  • Battery chargers, incl. DC fast chargers for e-cars

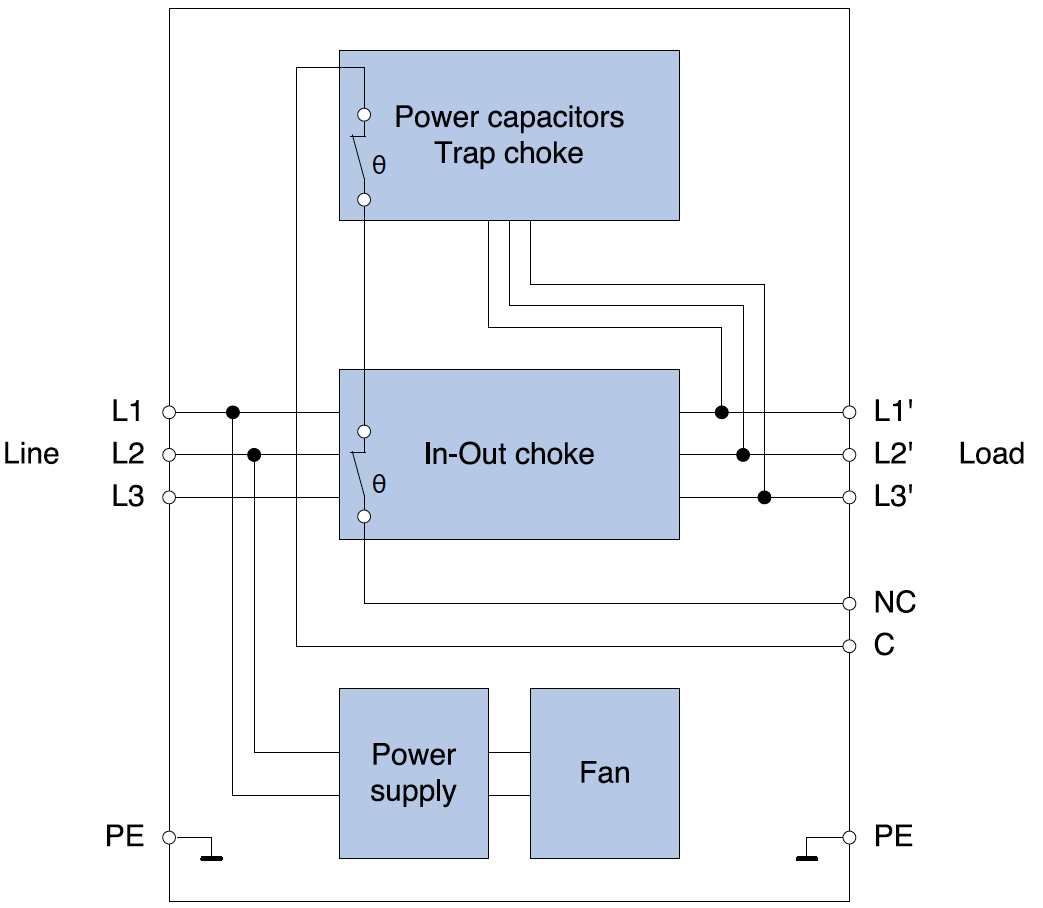

Typical electrical schematic

Performance characteristics (for diode rectifiers)

THID – Total harmonic current distortion

ECOsine high power passive harmonic filter performance is optimized for rectifiers/motor drives with a dc-link choke. In such applications, a THID of roughly 7% can be expected. The use of a dc-link choke is highly recommended. In a system without Ldc a THID of 13% can be expected.

Displacement power factor

At full load, ECOsine filters yield unity power factor. At lower load levels, the capacitive current into the power capacitors of the trap circuit cause a leading displacement power factor. This is the case with all types of passive filters with large capacitors. However, compared to traditional filters the useful range of Schaffner ECOsine is much extended (cos phi >0.9 from 35 to 100% of rated load).

DC-link voltage

ECOsine harmonic filters have a very low impact on the dc-link voltage of the motor drive. The voltage boost/buck as a function of load can be seen in the performance graph beside. Tolerances are kept narrow in order to ensure that motor drives do not suffer from nuisance tripping because of under- or over-voltage situations.

Filter selection table

Filter*

Rated load power

Power loss**

Input /outputWeight

@ 208 VAC/60 Hz

@ 25°C/60 Hz

connections



[HP]

[W]

[kg]

FN 3418 LV-8-44

2.5

41

-44

10

FN 3418 LV-11-44

3.5

81

-44

10

FN 3418 LV-15-44

5

72

-44

16

FN 3418 LV-21-33

7.5

152

-33

20

FN 3418 LV-28-33

10

214

-33

22

FN 3418 LV-35-33

12

277

-33

25

FN 3418 LV-41-33

15

289

-33

28

FN 3418 LV-53-34

20

383

-34

38

FN 3418 LV-65-34

25

393

-34

42

FN 3418 LV-80-35

30

493

-35

45

FN 3418 LV-105-35

40

514

-35

54

FN 3418 LV-130-40

50

741

-40

78

FN 3418 LV-160-40

60

832

-40

87

FN 3418 LV-190-40

75

873

-40

100

FN 3418 LV-240-99

100

876

-99

126

FN 3418 LV-310-99

125

984

-99

135

Filter application

ECOsine filters are best installed directly at the input of 6-pulse rectifiers. It is possible to connect several non-linear loads (e.g. motor drives) in parallel. In this case the rating of the filter must match the sum of the power ratings of drives connected to it. The use of a (built-in) DC-link choke is recommended for best harmonics mitigation performance. If the expected input power exceeds the rating of the largest available filter, and a custom solution is not desired, then two or more filters can be wired in parallel. In this mode of operation, it is recommended to use filters with equal power ratings to ensure proper current sharing.

Mechanical Data

FN 3418 LV-8 to -105

FN 3418 LV-130 to -190

FN 3418 LV-240 to -310

Dimensions

FN 3418 LV–…

8111521283541536580105130160190240310
A

390

390

390

455

455

455

455

520

520

580

580

700

700

700

700

700

B 185 185 185 250 250 250 280 280 280 280

280

450

450

450

450

450

C

190

190

190

230

230

230

230

248

248

248

248

385

385

385

385

385

E

370

370

370

435

435

435

435

500

500

555

555

665

665

665

665

665

F

140

140

140

200

200

200

200

225
225 225 225 350 350 350 350 350
G

9

9

9

11

11

11

11

11

11

11

11

13

13

13

13

13

J

M6

M6

M6

M8

M8

M8

M8

M8

M8

M10

M10

M10

M10

M10

M10

M10

V

25

25

W

6

6

X

12.5

12.5

Y

47

47

Z

11

11

Filter connector cross sections

–33

–34

–35

–40

–44

Solid wire

16 mm2

35 mm2

50 mm2

95 mm2

10 mm2

Flex wire

10 mm2

25 mm2

50 mm2

95 mm2

6 mm2

AWG type wire

AWG 6

AWG 2

AWG 1/0

AWG 4/0

AWG 8

Recommended torque

1.5–1.8 Nm

4.0–4.5 Nm

7–8 Nm

17–20 Nm

1.0–1.2 Nm

Installation

For more detailed information and step by step installation guidelines, please consult the user manual at www.schaffner.com or the installation instructions (delivered with each filter).
