| General | |
|---|---|
| Voltage AC () | 1000 |
| Nominal Frequency () | DC |
| Rated Current @ambient () | 150 |
| Ambient temperature () | 55 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2220-150-99-C2222-R99
SAP Number
822428
FN2220, FN2230 and FN2240
Description

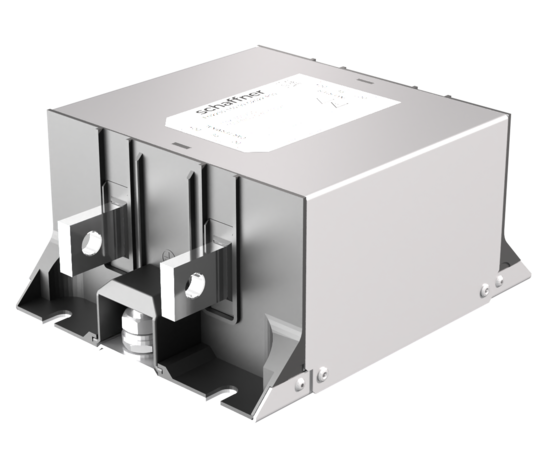

150 A EMV Filter mit Stromschienen
Type
Chassis mount
Phases
Gleichstrom
| Electric | |
|---|---|
| Input terminal | 99 - special / busbar |
| Output terminal | 99 - special / busbar |
| Resistance () | 10 |
| Attenuation | |
|---|---|
| Capacitance Cy1 () | 330 |
| Capacitance Cy2 () | 330 |
| CM attenuation @ 150kHz () | 51 |
| DM attenuation @ 150kHz () | 36 |
| Mechanic | |
|---|---|
| Length () | 150 |
| Width () | 163 |
| Height () | 95 |
| Volume () | 2323 |
| Weight () | 2690 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 145 |
| B (mm) | 163 |
| C (mm) | 95 |
| D (mm) | 205 |
| E (mm) | 182 |
| F (mm) | 110 |
| G (mm) | 9 |
| L (mm) | 200 |
| P (mm) | 67 |
| U (mm) | 48 |
| V (mm) | 20 |
| W (mm) | 3 |
| X (mm) | 12.5 |
| Z (mm) | 9 |
