| General | |
|---|---|
| Voltage AC (V) | 600 |
| Nominal Frequency (Hz) | 50 |
| Rated Current @ambient (A) | 6 |
| Ambient temperature (°C) | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8132-6-6M0
SAP Number
816967
RT series
Description

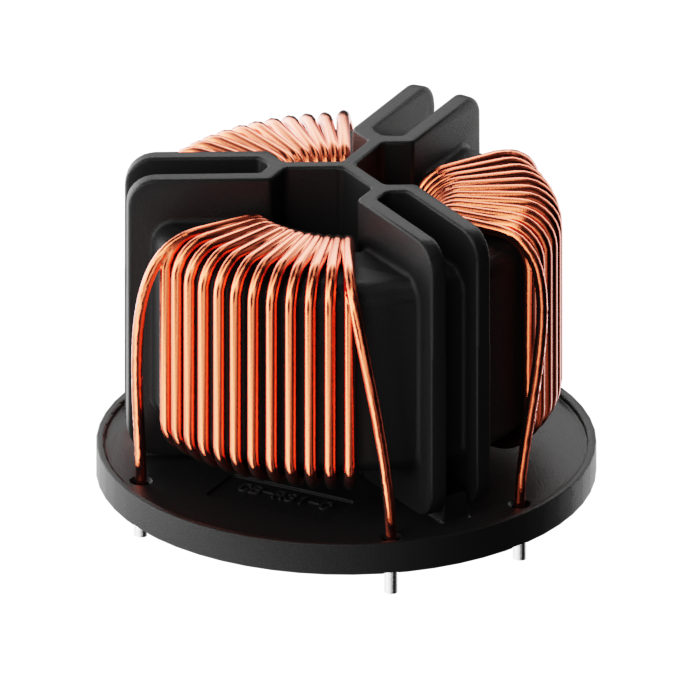

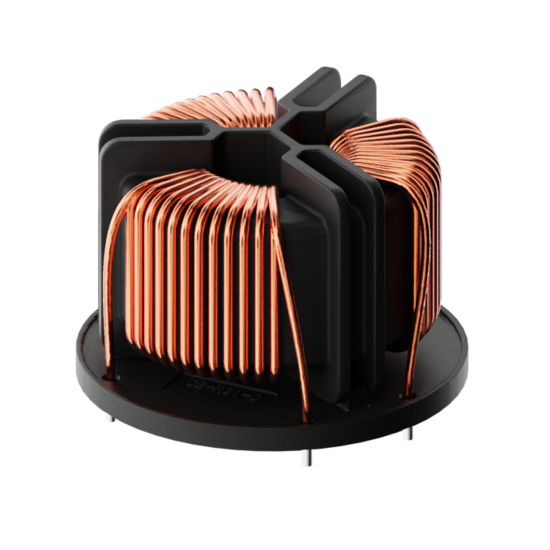

Horizontal 6 A PCB three line Common Mode Choke with 6 mH Inductance
Type
Gleichtaktunterdrückungsdrosseln
Application
Universell
Phases
Dreiphasig
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 (µH) | 6 |
| Mechanic | |
|---|---|
| Length (mm) | 46 |
| Width (mm) | 46 |
| Height (mm) | 34 |
| Volume (cm3) | 71.944 |
| Frame size | 18 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) | 38 ± 0.5 |
| D (mm) | ØD = 46 ØD1= 43 ± 0.5 ØD2= 1.4 ØD3= 2.5 |
| H (mm) | 34 |
