| General | |
|---|---|
| Voltage AC (V) | 300 |
| Voltage DC (V) | 425 |
| Nominal Frequency (Hz) | 50 |
| Rated Current @ambient (A) | 20 |
| Ambient temperature (°C) | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8122-20-3M0
SAP Number
816960
RT series
Description

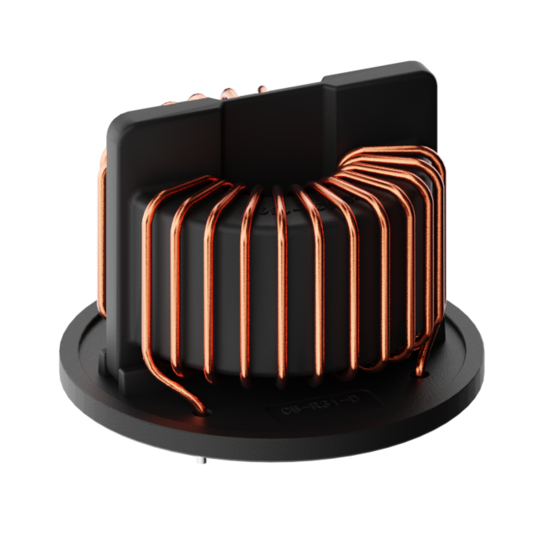

Horizontal 20 A PCB two line Common Mode Choke with 3 mH Inductance
Type
Gleichtaktunterdrückungsdrosseln
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 (µH) | 3 |
| Mechanic | |
|---|---|
| Length (mm) | 57 |
| Width (mm) | 57 |
| Height (mm) | 37 |
| Volume (cm3) | 120.213 |
| Frame size | 3 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) | 32 ± 0.5 |
| B (mm) | 36 ± 0.5 |
| D (mm) | ØD = 57 ØD1= 54 ± 0.5 ØD2= 2.1 ØD3= 2.5 |
| E (mm) | øЕ = 43 ± 0.3 |
| H (mm) | 37 |
