| General | |
|---|---|
| Voltage AC (V) | 1000 |
| Nominal Frequency (Hz) | DC |
| Rated Current @ambient (A) | 600 |
| Ambient temperature (°C) | 50 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

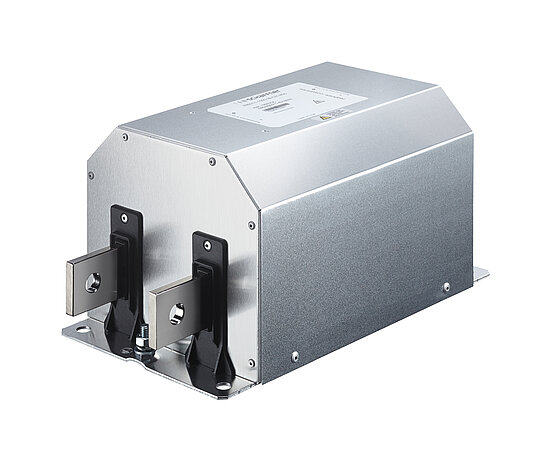

FN2211-600-99-C22-R66
SAP Number
822362
FN2211 and FN2210
Description
600 A EMV Filter mit Stromschienen
Type
Chassis mount
Phases
Gleichstrom
| Electric | |
|---|---|
| Input terminal | 99 - special / busbar |
| Output terminal | 99 - special / busbar |
| Attenuation | |
|---|---|
| CM attenuation @ 150kHz (dB) | 32 |
| DM attenuation @ 150kHz (dB) | 16 |
| Mechanic | |
|---|---|
| Length (mm) | 315 |
| Width (mm) | 175 |
| Height (mm) | 150 |
| Volume (cm3) | 8269 |
| Weight (g) | 4260 |
Schaffner schemes
| Dimensions |
|---|
