| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 10 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

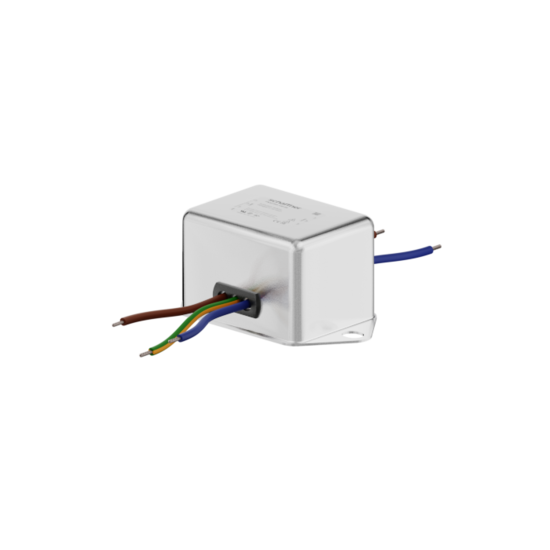

FN2090B-1-07
SAP Number
822529
FN2090
Description
10 A EMV Filter mit Litzen
Type
Chassis mount
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Input terminal | 07 - wire |
| Output terminal | 07 - wire |
| Power Loss () | 1.8 |
| Resistance () | 680 |
| Attenuation | |
|---|---|
| Inductance L1 () | 20 |
| Capacitance Cx1 () | 0.22 |
| Mechanic | |
|---|---|
| Length () | 94 |
| Width () | 56 |
| Height () | 45.4 |
| Volume () | 239 |
| Weight () | 100 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 71 |
| B (mm) | 46.6 |
| C (mm) | 22.3 |
| D (mm) | 50.5 |
| E (mm) | 44.5 |
| F (mm) | 61 |
| G (mm) | 21 |
| H (mm) | 10.8 |
| I (mm) | 16.8 |
| J (mm) | 25.25 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | 6.3 x 0.8 |
| O (mm) | 8.3 |
| P (mm) | 14 |
