| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 20 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation

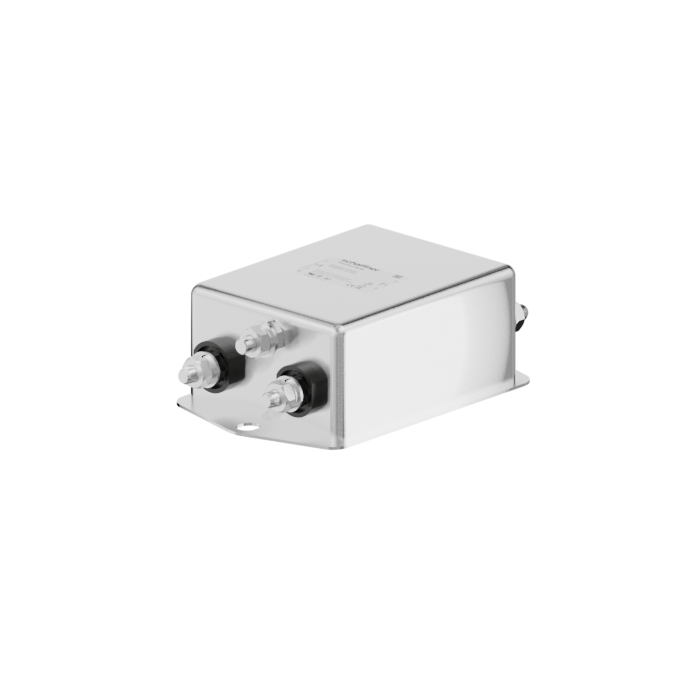

FN2020B-20-08
SAP Number
801441
FN2020
Description
20 A EMV Filter mit M4 Schraubanschluss
Type
Chassis mount
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Input terminal | 08 - M4 screw terminal |
| Output terminal | 08 - M4 screw terminal |
| Power Loss () | 3.8 |
| Resistance () | 1000 |
| Attenuation | |
|---|---|
| Inductance L1 () | 0.6 |
| Capacitance Cx1 () | 0.15 |
| Mechanic | |
|---|---|
| Length () | 64.8 |
| Width () | 49.8 |
| Height () | 30.3 |
| Volume () | 98 |
| Weight () | 210 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 85 |
| B (mm) | 54 |
| C (mm) | 30.3 |
| D (mm) | 64.8 |
| E (mm) | 49.8 |
| F (mm) | 75 |
| G (mm) | 27 |
| H (mm) | 12.3 |
| I (mm) | 20.8 |
| J (mm) | 19.9 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | M4 |
