| General | |
|---|---|
| Voltage AC (V) | 250 |
| Nominal Frequency (Hz) | 50 |
| Rated Current @ambient (A) | 12 |
| Ambient temperature (°C) | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information

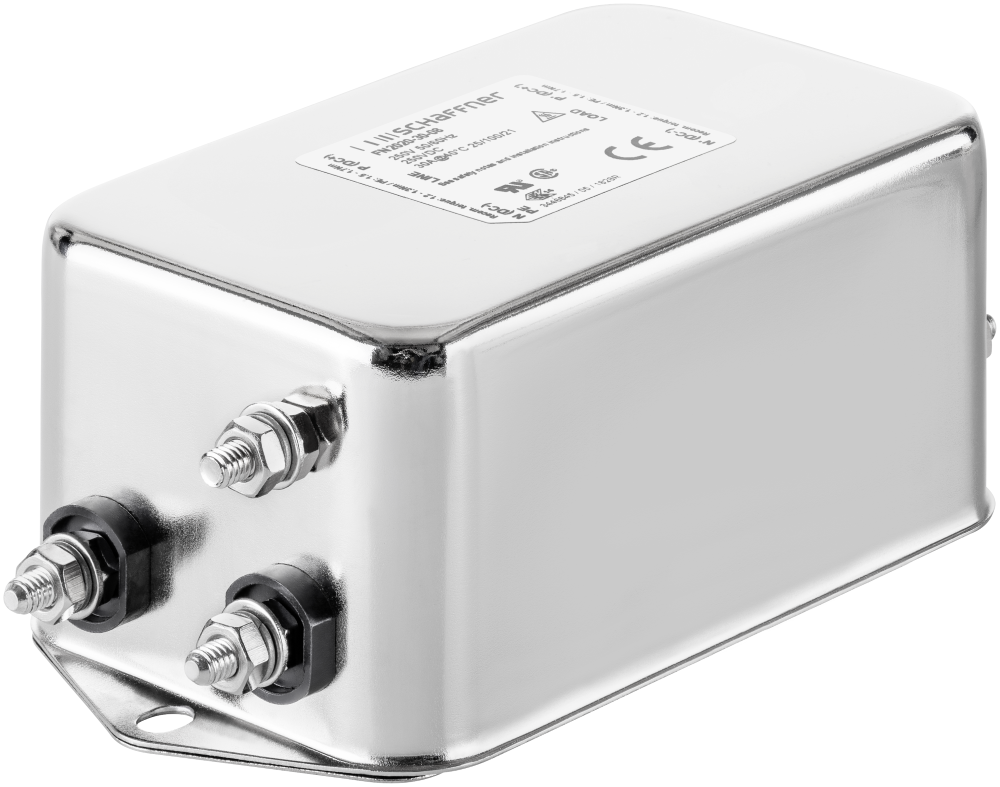

Designation
FN2020B-12-06
SAP Number
800750
FN2020
Description
12 A EMV Filter mit Flachsteckern
Type
Chassis mount
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Input terminal | 06 - faston 6.3x0.8/sold lug |
| Output terminal | 06 - faston 6.3x0.8/sold lug |
| Power Loss (W) | 3.6 |
| Resistance (kΩ) | 1000 |
| Attenuation | |
|---|---|
| Inductance L1 (µH) | 0.7 |
| Capacitance Cx1 (µF) | 0.15 |
| Mechanic | |
|---|---|
| Length (mm) | 43.5 |
| Width (mm) | 32.5 |
| Height (mm) | 29.3 |
| Volume (cm3) | 41 |
| Weight (g) | 85 |
Schaffner schemes
| Dimensions | |
|---|---|
| A (mm) | 64 |
| B (mm) | 35 |
| C (mm) | 29.3 |
| D (mm) | 43.5 |
| E (mm) | 32.5 |
| F (mm) | 54 |
| G (mm) | 21 |
| H (mm) | 9.3 |
| I (mm) | 15.3 |
| J (mm) | 21.8 |
| K (mm) | 5.3 |
| L (mm) | 6.3 |
| M (mm) | 0.7 |
| M (mm) | 6.3 x 0.8 |
| O (mm) | 8.3 |
| P (mm) | 21.8 |
