| General | |
|---|---|
| Voltage AC () | 250 |
| Nominal Frequency () | 60 |
| Rated Current @ambient () | 60 |
| Ambient temperature () | 40 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
FN2010N-60-24
SAP Number
817047
FN2010
Description

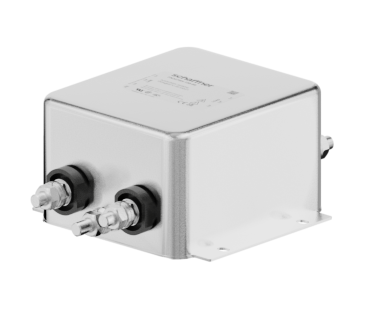

60 A EMV Filter mit Schraubanschlüssen
Type
Chassis mount
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Leakage current IEC60939 () | 7.23 |
| Resistance () | 330 |
| Attenuation | |
|---|---|
| Inductance L1 () | 1 |
| Capacitance Cx1 () | 1.5 |
| Capacitance Cy1 () | 100 |
| CM attenuation @ 150kHz () | 46 |
| DM attenuation @ 150kHz () | 24 |
| Mechanic | |
|---|---|
| Length () | 99.5 |
| Width () | 84.5 |
| Height () | 57.6 |
| Volume () | 484 |
| Weight () | 1120 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| A (mm) () | 105 ±1 |
| B (mm) | 145.9 ±1 |
| C (mm) | 57.6 ±1 |
| D (mm) | 84.5 ±1 |
| E (mm) | 99.5 |
| F (mm) | 95 |
| G (mm) | 40 |
| H (mm) | 19.6 |
| I (mm) | 10.1 |
| J (mm) | 42.25 |
| K (mm) | 4.4 |
| L (mm) | 6 |
| M (mm) | 1.2 |
| M (mm) | M6 |
