| General | |
|---|---|
| Voltage AC () | 300 |
| Voltage DC () | 425 |
| Nominal Frequency () | 50 |
| Rated Current @ambient () | 50 |
| Ambient temperature () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8521-50-8M6
SAP Number
823792
Product Family
RT Series N
Description

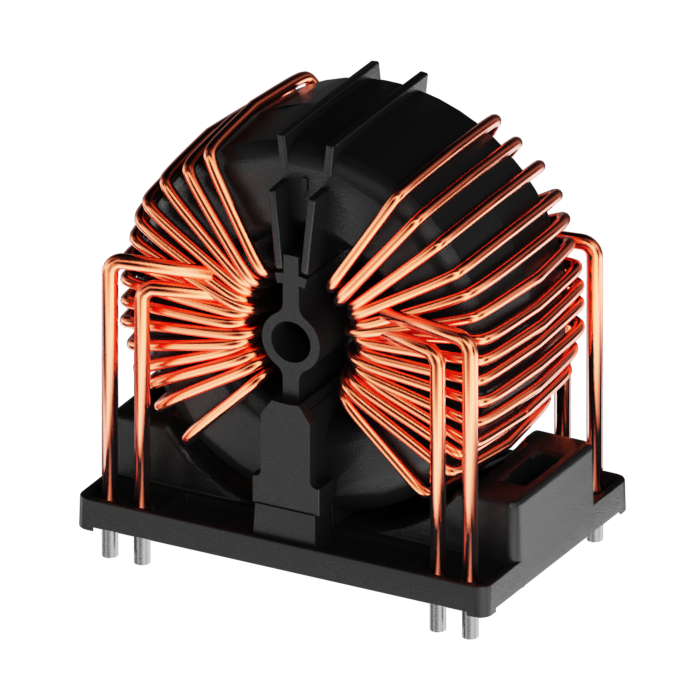

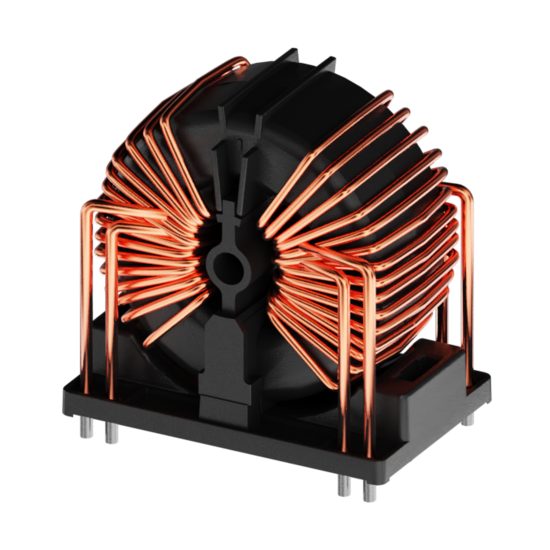

Vertical 50 A PCB two line Common Mode Choke with 8.6 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 () | 8.6 |
| Mechanic | |
|---|---|
| Length () | 64 |
| Width () | 41 |
| Height () | 64 |
| Volume () | 167.936 |
| Frame size | 16 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| B (mm) | 42±0.2 |
| C (mm) | 36±0.4 |
| D (mm) | 18±0.2 |
| G (mm) | 0.6 ±0.1 |
| H (mm) | 64 |
| L (mm) | 64±0.2 |
| M (mm) | 4 |
| M (mm) | 5 ±0.4 |
| O (mm) | 51±0.5 |
| P (mm) | 56±0.4 øР=2.2 ±0.1 |
| Q (mm) | 56 ±0.4 |
| R (mm) | 5±0.5 |
