- Rated currents from 1 to 10 A
- Compact housing
- Optional overvoltage protection (Z type)
Performance indicators
Maximum continuous operating voltage |
250 VAC, 50/60 Hz |
Nominal operating voltage |
230 VAC |
Rated currents |
1 to 10 A @ 40°C |
Operating frequency |
DC to 400 Hz |
High potential test voltage |
P –> PE 2000 VAC for 2 sec |
Surge pulse protection (Z type) |
2 kV, IEC 61000-4-5 |
Temperature range (operation and storage) |
-25°C to +100°C (25/100/21) |
Flammability corresponding to |
UL 94 V-0 |
Design corresponding to |
UL 1283 (not for Z Version), CSA 22.2 No. 8 1986, IEC/EN 60939 |
MTBF (Mil-HB-217F) |
>710,000 h @ 40°C/230 V |
Approvals & Compliances
Features and Benefits
- FN 332 filters are designed for easy and fast chassis mounting
- FN 332 filters are also available with integrated surge pulse protection to safeguard sensitive electrical equipment
- All FN 332 single-phase filters provide a good attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
- Chokes with high saturation resistance and high inductivity
- Surge pulse protection
- Custom-specific versions on request
Typical Applications
- Electrical and electronic equipment
- Consumer goods
- Household equipment
- Power supplies
- Office automation equipment
- Datacom equipment
- Industrial equipment auxiliary supply

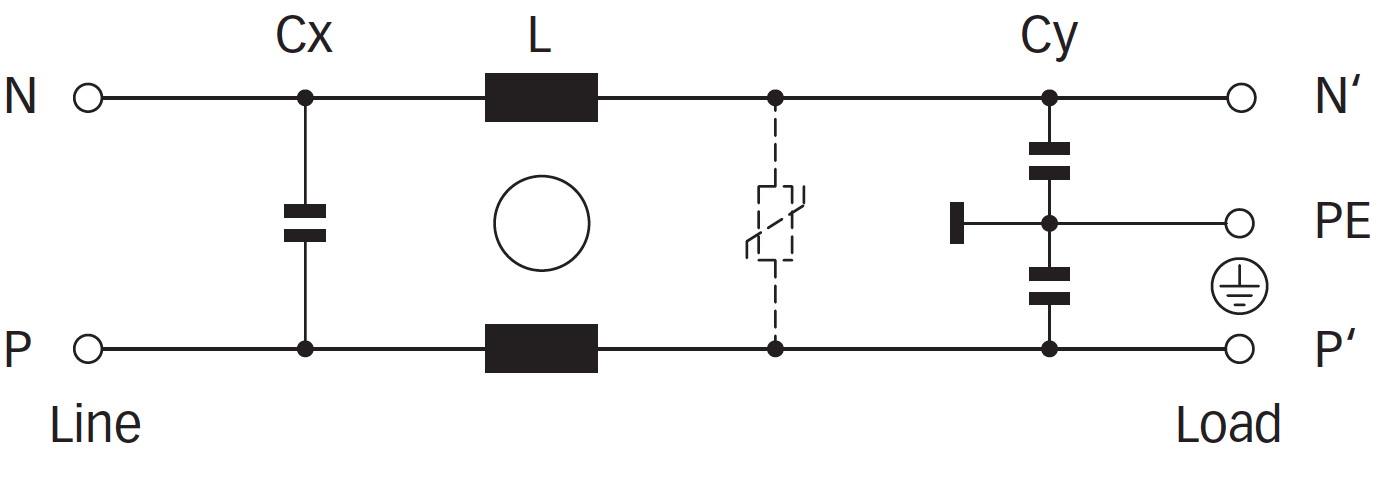

Typical electrical schematic
