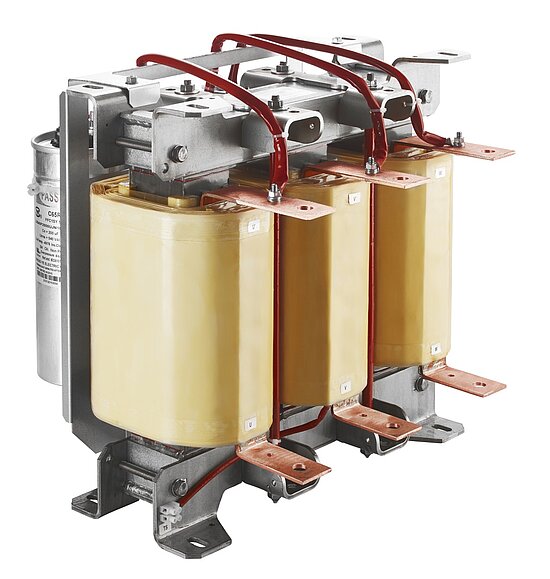

用于电机驱动的LC正弦波滤波器
- 防止电机过压
- 减少电机噪音
- 减少电机损耗
- 增加电机使用寿命
- 可以应用长电机电缆
。
Features and Benefits
Typical Applications
Technical Specifications
标称工作电压
3x480 VAC
额定工作电压
3x530 VAC
额定电流
2.3 to 1000 A
阻抗 (uk)
6% @ 400 V, 50 Hz and rated current
剩余纹波电压
<5%
电机频率
0...60 Hz (up to 200Hz with derating, see user manual)
开关频率fPWM
Min. 2 or 4kHz, max. 16kHz, see filter selection table
过载能力
1.5× rated current for 1 minute, once per hour
污染程度
3
高电位测试电压
P –> E 2480 VAC, 1 s
过电压类别
OV III (IEC 60664-1)
保护类别
IP00 (E0XXT versions)
IP20 (E2FXT option, up to 110A version)
电机电缆长度
Up to 1'000 m or 2'000 m (see user manual)
环境温度范围
-40°C to +45°C fully operation
+45°C to +100°C (up to 18A) or +70°C (26A and above) derated operation*
-40°C to +70°C transport and storage
气候等级
40/070/21
与之对应的设计
Filter: UL 61800-5-1, EN 61800-5-1
Chokes: EN 61558-2-20 or EN 60076-6
可燃性对应于
UL 94 V-2
MTBF @ 40°C/480 V (Mil-HB-217F)
>500'000 hours

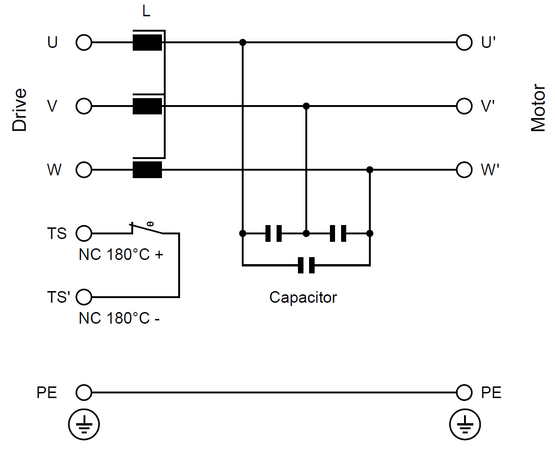

Typical electrical schematic
