| General | |
|---|---|
| Voltage AC (V) | 300 |
| Voltage DC (V) | 425 |
| Nominal Frequency (Hz) | 50 |
| Rated Current @ambient (A) | 25 |
| Ambient temperature (°C) | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8522-25-2M5
SAP Number
822798
RT series
Description

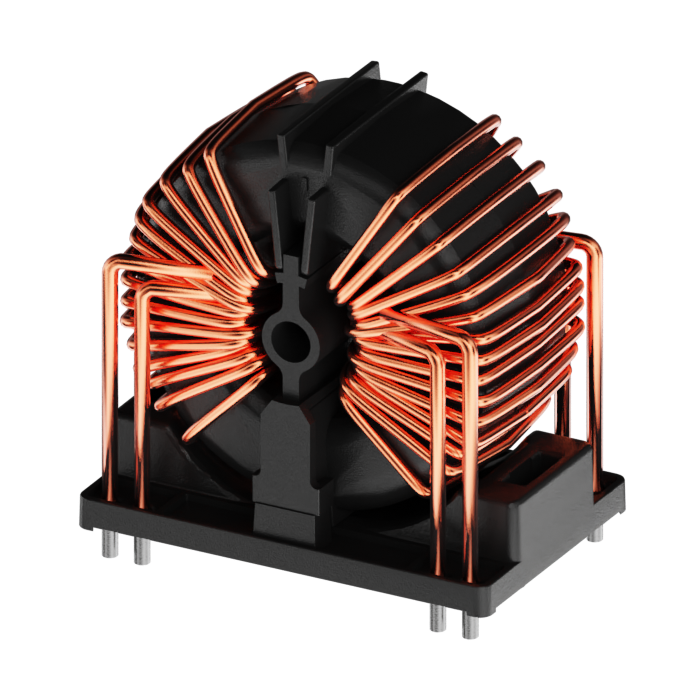

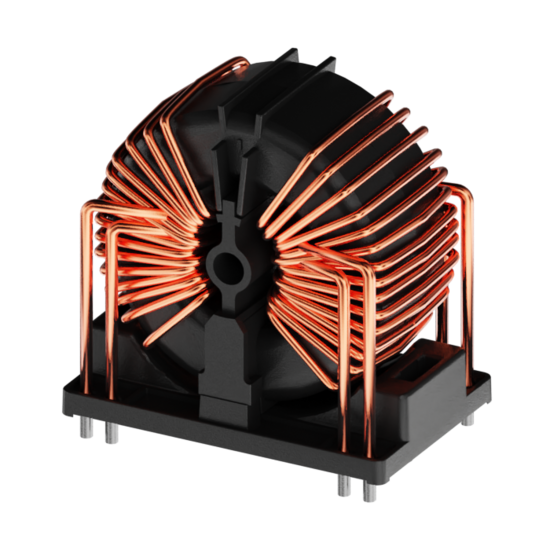

Vertical 25 A PCB two line Common Mode Choke with 2,5 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
2 Line
| Electric | |
|---|---|
| Input terminal | 02 - PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 (µH) | 2.5 |
| Mechanic |
|---|
Schaffner schemes

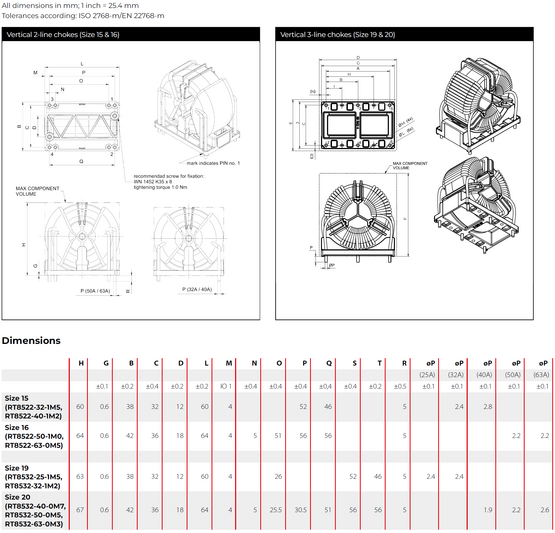

Mechanical Data Image
| Dimensions |
|---|
